EcoDiesel EGR Delete: What Fits a 2014-2018 Ram 1500 or Jeep Grand Cherokee

What Does A Factory EGR System Actually Do On A Diesel?

Diesel combustion and the emissions hardware around it are one system, not two. In diesel engines, internal combustion expands high-temperature, high-pressure gases, which in turn move pistons.^[3] A next-generation cooled exhaust gas recirculation system is what decreases NOx emissions.^[2] A manufacturer emissions-control listing names cooled exhaust gas recirculation alongside selective catalytic reduction, a diesel particulate filter and an intake throttle.^[1]

What diesel combustion actually produces

Here's the thing. None of the plumbing on the side of your engine makes sense until you picture what is leaving the cylinder.

Heat. Pressure. A charge of gas that has already done its work and now has to go somewhere. Every part bolted downstream of that is trying to manage the same three things, which is why they all end up clustered in the same corner of the engine bay.

Your engine turns fire into twist. The rest of the hardware is there to deal with what the fire leaves behind.

The NOx job cooled recirculation does

Let's break it down. A hotter charge makes more NOx, and a cooler one makes less.

That single relationship is the reason the factory hangs a heat exchanger off the side of a perfectly good engine instead of running a plain pipe. Cool that gas and the combustion event comes down in temperature. The cooler is doing thermal work, not power work, and it never pretended otherwise.

Worth being blunt about that last part. The cooler was never a performance component, and nobody at the factory designed it to be one.

What else sits alongside EGR in the factory set

EGR does not work alone, and that matters the day you start taking things off. Common rail fuel systems significantly improve performance, fuel economy and emissions control in modern engines.^[4]

So you have a fuel side, an air side and an aftertreatment side, all calibrated around each other before the truck ever left the line. Change one and the other two notice immediately.

That is the single most useful idea to carry into this job. Nothing on a modern diesel is a standalone part.

Pull one piece out of that arrangement and you have not simplified anything. You have changed the assumptions the other two were built on, which is exactly why a delete is a hardware job and a software job at the same time.

Why Do EGR Valves And Coolers Clog On A 3.0L EcoDiesel?

A clogged cooler is not a mystery; it is the factory circuit doing exactly what it was built to do. Factory cooler setups recirculate soot and harmful gases through your engine, causing buildup and clogs that drag down performance and lead to proven mechanical issues. Variable geometry turbochargers aid engine braking, exhaust gas recirculation and thermal management across engine speeds and loads.^[5]

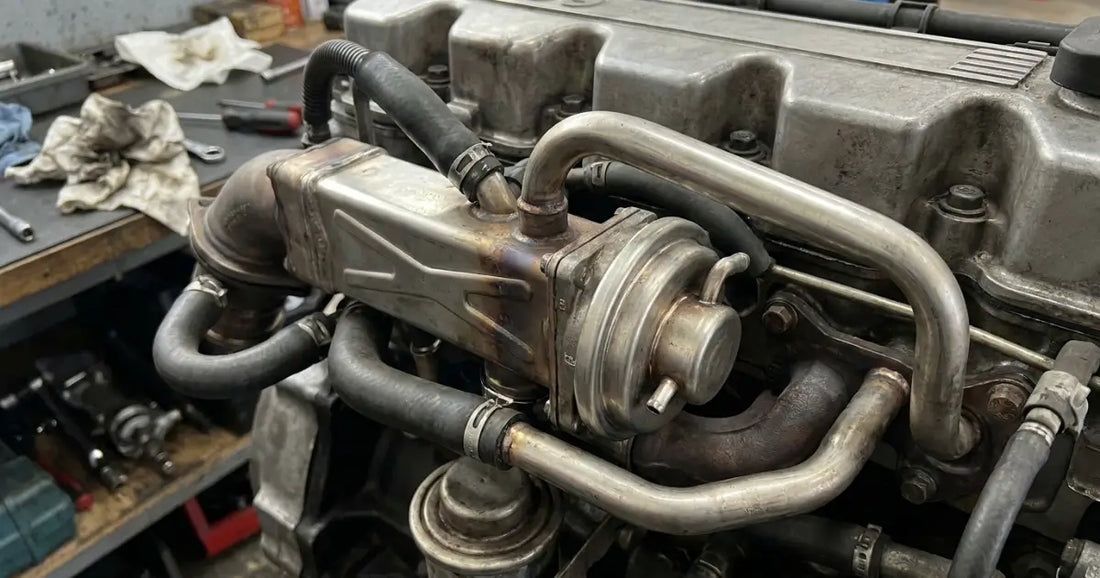

How soot accumulates on a cooler core

Picture the cooler core as a radiator that gets fed exhaust instead of air. Soot is sticky. It lands, it cools, it hardens, and the next lot lands on top of that.

Nothing in there scrubs it off, because there is nothing in there to scrub with. The core just keeps collecting.

Now add coolant running through the middle of that same assembly. Hot dirty gas on one side, coolant on the other, and a thin wall between them doing all the work. That wall is the part of your engine you never think about until it stops being a wall.

The symptoms owners notice first

You rarely get a warning light first. You get a truck that feels lazy off idle and a turbo that takes its time getting into the boost.

That is flow, and flow is exactly what a caked circuit takes away from you. The turbo is not a bystander in any of this either.

We get it, none of that shows up as a single clean symptom you can point at. It arrives as a truck that used to feel one way and now feels another, and most owners talk themselves out of it for a season before they go looking.

Where a neglected cooler ends up

Left long enough, this stops being a maintenance item. It becomes a teardown.

Nobody wants to pull an intake to chase carbon out of a passage. The good news? On a build you control the timing. The choice on a high-mileage EcoDiesel is usually between doing this once, deliberately, on a day you picked, and doing it later in a hurry on a day that picked you.

The factory circuit is doing precisely what it was designed to do. That is the problem, not a defect.

Which Trucks Does The EGR Delete Kit Fit?

The EGR Delete kit is listed for the 2014, 2015, 2016, 2017 and 2018 model years with the EcoDiesel 3.0L engine. Ram offers a full lineup of pickups and commercial vehicles that includes the light-duty Ram 1500.^[6] Read the engine badge and the model year off your own truck before anything else.

Reading the model year off your own truck

Badges lie. Not on purpose, but a truck that has had a front clip replaced or a tailgate swapped will happily tell you the wrong story.

The build sticker in the driver's door opening does not lie. Neither does the engine itself. Two minutes with a flashlight beats a week waiting on a return, and it costs you nothing but the walk out to the shop.

Write it down while you are out there. Year, engine, cab, and what the sticker actually says, all on your phone before you walk back inside. Half the wrong-part stories in this hobby start with somebody trusting their memory over the sticker.

Where this fitment list stops

If your year is not on that list, this is not your kit. Nothing about "close enough" makes an intake passage line up, and there is no adapter that fixes a flange that was cut for a different casting.

That is why we list years the way we do. One part number, one engine family, one set of years, and no ambiguity about which side of the line your truck sits on.

That precision cuts both ways, and it is worth saying plainly. Nothing here almost works. The kit that matches your engine matches it properly, with no shimming and no creative bracketry to make up the difference.

Does The Kit Do The Same Job On A Ram And A Jeep?

The EGR Delete kit is the one part number for both trucks, and what it removes is what changes. Fits 2014, 2015, 2016, 2017, and 2018 Ram 1500 (full delete) and Jeep Grand Cherokee (valve-only) with the 3.0L EcoDiesel. On the Ram this kit completely removes the EGR valve and cooler, seals the intake passages, and reroutes coolant flow.

The full valve-and-cooler job on the Ram

One kit covers both the Ram 1500 and the Jeep Grand Cherokee EcoDiesel, with one important difference: it's a full valve-and-cooler delete on the Ram, and a valve-only delete on the Jeep.

On the Ram you are taking the whole assembly out and then closing every hole it leaves behind. That is why coolant routing is part of the job rather than an afterthought.

Pull a heat exchanger out of a coolant circuit and the circuit still has to make sense afterwards. Plan for that and the day goes smoothly. Discover it halfway through and you are standing in a puddle.

The valve-only job on the Jeep

On the Jeep it deletes the valve only — the cooler stays.

Less to take off. Less to seal. Less to route. Knowing which of the two jobs your truck gets before you start is the whole difference between a planned afternoon and a surprise one.

Which of the two are you working on? Answer that first, because everything after it changes.

Why one part number covers both

The Jeep side of this is older than most people assume. A 3.0-liter V6 diesel Jeep Grand Cherokee reached the market in early 2007.^[2]

The parts that come off bolt to the engine, not to the body. That is how one kit reaches a pickup and an SUV without either one getting a compromised version of the job.

It also means the knowledge transfers. Work on one of them and the other stops being a mystery, because the engine underneath both is doing the same thing in the same places.

What Is The Hardware In The EGR Delete Kit Made Of?

The hardware is built right: billet aluminum construction, nickel-plated steel flanges, a stainless steel bracket, high-temp silicone hoses, zinc-coated hardware, and precision O-rings. Everything needed for a complete install is in the box, and you only need basic tools. Lay the parts out on a bench before the first wrench comes out.

What billet and nickel plating buy you here

Billet is not a marketing word. It means the part started as a solid block and got cut rather than poured, which is why the sealing faces stay flat when the engine bay gets hot and then cold and then hot again.

Nickel plating on a steel flange does the boring, important job. It keeps the flange from seizing into whatever it is bolted to.

Two seasons later, that is the difference between a fastener that turns and a fastener that snaps off flush. Anyone who has drilled out a broken stud knows exactly what that plating is worth.

Silicone and stainless tell the same story twice over. Heat cycles and coolant find every cheap material eventually, and the parts that survive are the ones chosen for that job rather than chosen for the invoice.

Laying the parts out before you start

Spread everything on the bench and match it against the photos before a single fastener moves. Ten minutes there saves an hour on your back later, and you are not hunting for a missing seal with the intake already off.

Sort the hardware by where it goes, not by size. Bag the factory bolts you are keeping. Small habits, and they are what separates a clean job from a long one.

Take photos as you go, too. Not for anyone else, just for you, for the moment a hose routing that was obvious on the way apart turns into a puzzle on the way back together.

Should The Tuner Go On Before Or After The Hard Parts?

Sequence decides how the day goes on this job. The Diesel Dudes highly advise installing the delete tuner first, always.^[7] After installing the tuner, you can start removing the hard parts.^[7] You want to be loading the tunes without any codes present.^[7] Plan a tuner into the same job as the EGR Delete kit.

Why the tuner goes on first

Do it the other way round and you can end up with a truck in pieces and a tune that will not load. That is a bad afternoon in anyone's shop.

With the hardware still on the truck, everything the software expects to find is still there to find. Load the file, confirm it took, then start turning wrenches.

The truck is never stranded that way. Worst case, you stop and sort the software out with a vehicle that still moves under its own power.

What a stored code does to a tune load

A code is not just a light on the dash. It is the ECM saying that something is not reporting the way it should, and tuning software written to be careful will stop rather than guess.

So the order is not superstition and it is not tradition. It is the shortest path to a truck that fires and drives when you are done.

Clean slate first, hardware second. That sequence has fewer ways to go wrong than any other.

The order to work in on the day

Tuner first. Then the EGR side. Then buttoning everything up, refilling coolant, and a slow shakedown on the pad before the truck goes anywhere near a trailer.

Work in that order and every step confirms the one before it. Work out of order and you are debugging two systems at once with the intake already on the floor.

Give yourself the whole afternoon and stop when you get tired. Almost every mistake on a job like this lands in the last hour, on the step somebody decided to finish rather than leave until tomorrow.

What Should You Expect During Installation?

Set the parts out before anything comes off the engine. The first thing you should do is verify you have all the parts shown above.^[8] Your parts may look slightly different depending on the version you got.^[8] The Diesel Dudes recommend watching the first installation video, then moving onto the others if you need more information.^[8]

The parts check before anything comes apart

Count everything. Twice, if the box has been sitting on a shelf in the shop for a month.

A missing O-ring is a two-minute problem on the bench and a wasted Saturday halfway through the job. That asymmetry is the entire argument for opening the box the night before instead of the morning of.

Watch the walkthrough all the way through once before you touch anything, too. You will spot the one step that needs a tool you do not own yet.

Tools and consumables to have ready

Basic hand tools cover most of this, but basic still means the right basics. A socket set that actually reaches, a torque wrench you trust, fresh coolant, a drain pan, and shop towels you are happy to throw away.

Have the coolant on the shelf before you start. Draining a system you cannot refill is the most common way this job stalls out, and it always happens at the point where the parts store has just closed.

What to do when a part looks different from the photo

Hardware revisions happen. A bracket gets a different bend, a fitting gets a different finish, and the kit still does the same job on the same engine.

What matters is that the part matches your engine, not that it matches a picture taken two years ago. If something genuinely does not look right, stop before you cut or force anything and get it confirmed.

Nothing on this job rewards guessing. Everything on it rewards a five-minute check.

Why Is The Kit Engine-Specific, And What Does It Cost?

The EGR Delete kit is listed at $299.00. Free shipping; 30-day returns on unused kits. A manufacturer emissions-control listing records high pressure EGR in an uncooled form.^[10] A manufacturer emissions-control listing names a cooled exhaust gas recirculation valve among the fitted components.^[9] Match the kit to the engine rather than to the badge.

What the listed price covers

One kit, one engine family, and no configuration maze to work through. That is what the number buys, and it is why the number does not move around depending on which cab or bed you have.

There is no partial version of this job worth doing. Either the flanges and the routing match your engine or they do not, and a kit that half-fits is a kit that comes back off.

EGR Delete | Dodge/Jeep 3.0L EcoDiesel 2014-2018

For a 2014 through 2018 Ram 1500 or Jeep Grand Cherokee running the 3.0L EcoDiesel, the EGR Delete kit is the one to fit.

The only real risk here is picking for the wrong truck, and that is a two-minute check rather than a gamble. Confirm the year, confirm the engine, and the rest of it is a bench job and an afternoon.

Why one engine's EGR hardware is not another's

Two diesels can both run exhaust gas recirculation and share almost nothing about how it is arranged. Cooled or uncooled. High pressure or low. A valve integrated into a housing on one engine and hung off a bracket on the next.

Those are design decisions, and they change what physically has to come off the engine. That is why a generic delete kit is not a thing you can buy. A delete kit for your engine is.

Checking your engine before you order

Engine code first, badge second, forum thread never. Your build sticker and the engine itself will tell you in one look what a whole afternoon of reading will not.

Want the shortest version of all of this? Match the kit to the engine you actually have, and the rest of the job is just wrenching.
