Fix Your L5P Duramax VGT Sticking the Right Way

Your L5P Duramax packs a 6.6L V8 turbodiesel making 445 hp and 910 lb-ft of torque stock. That power comes from a single Holset HE451VE variable geometry turbocharger — a precision piece of engineering that adjusts internal vanes to optimize boost pressure across the entire RPM range.

The VGT system works like this: movable vanes inside the turbo housing pivot on a unison ring. At low RPM, the vanes close tighter to speed up exhaust gas velocity, which spins the turbine faster and eliminates turbo lag. At high RPM, they open wider to reduce backpressure and maximize exhaust flow. This gives you instant throttle response when merging and sustainable power when towing.

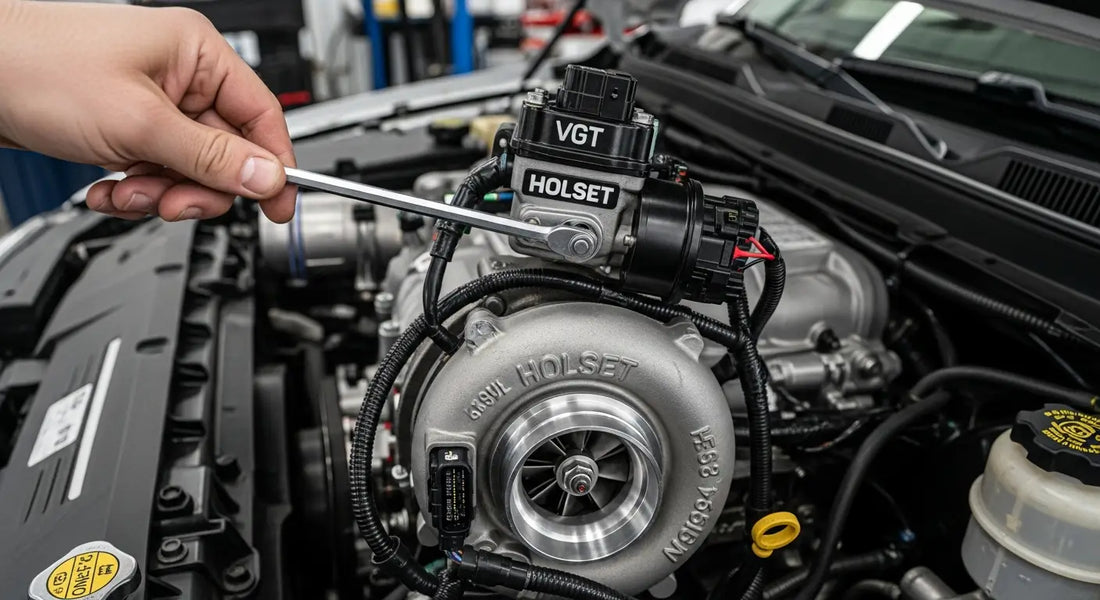

An electronic actuator mounted on top of the turbo controls these vanes. It's a gear-driven servo motor with an internal potentiometer that tells the ECM exactly where the vanes are positioned. Four 10mm nuts hold it in place (torque spec: 119 in-lbs), and the lever arm connects with a 4mm Allen bolt (93 in-lbs).

The Three Ways VGT Systems Fail

Carbon and soot buildup — Diesel combustion creates microscopic carbon particles. The EGR system recirculates exhaust gases to reduce NOx emissions, but it also pumps soot back through the intake. Over 60,000-100,000 miles, carbon bakes onto the vane mechanisms at temperatures exceeding 1,200°F.^[2] Temperature cycling makes it worse — when you shut down, moisture condenses and mixes with carbon to create cement-like deposits.

Actuator electronics failure — The circuit board inside the actuator corrodes over 3-5 years. The potentiometer wears out from constant adjustment. Gear teeth strip. When the electronics fail, the ECM can't control vane position, and you get stuck with vanes in whatever position they were in when failure occurred.

Wiring harness damage — The factory harness lacks proper slack. Engine vibration causes the wires to chafe against the actuator housing, eventually breaking the signal wires. This creates intermittent failures that drive you insane — codes appear and disappear randomly.

The check engine light comes on first. Your scanner pulls P003A (Turbocharger Bypass Valve Position Exceeded Learning Limit) or P0046 (Turbocharger Boost Control Position Exceeded Learning Limit). These codes mean the ECM tried to move the vanes but couldn't get them where they need to be.

Performance symptoms follow a pattern. You'll notice rough spool-up — the turbo hesitates before building boost. Low-end torque disappears, making your truck feel gutless pulling away from stoplights. Under load, you might get a whistling or surging exhaust note that sounds completely wrong. In severe cases, the truck goes into reduced engine power mode, cutting performance to protect the engine.

The Manual Vane Movement Test

This test gives you definitive diagnosis in 5 minutes. Locate the vane actuator lever on the passenger side of the turbo — it's a small arm visible from above on most L5P installations. Engine must be off and cool — hot turbo housings cause serious burns, so wait at least 30 minutes after shutdown.

Gently attempt to move the actuator lever by hand. Normal vanes move smoothly with consistent light resistance throughout the range of motion. You should feel the vanes sweeping through their full travel. Stuck vanes feel completely different — stiff, notchy, gritty, or frozen solid. If the lever won't budge at all, the vanes are seized. If it moves but catches at certain points, carbon buildup is restricting movement.

Pro tip: If the lever moves freely but you're still getting codes, the problem's electrical — either wiring damage or actuator circuit board failure. This simple test prevents unnecessary turbo removals and $3,000 mistakes.

Let's talk driving patterns first. Your daily routine directly impacts how fast soot builds up. Short trips are the worst offenders. When you drive less than 15 miles, the turbo never reaches full operating temperature. Carbon deposits don't burn off — they just accumulate on the vane shafts and unison ring.

City driving keeps RPMs low, typically under 2,000. The turbo operates in a narrow range, and exhaust temperatures stay relatively cool. Soot sticks to surfaces instead of burning away. Extended idling creates the same problem. Sitting at idle for 20-30 minutes generates exhaust without the heat and flow needed to keep components clean.

Highway driving helps. Running at 2,500+ RPM for 20 minutes generates enough heat to burn off light carbon deposits. The increased exhaust flow also prevents accumulation. We see this pattern constantly — truck owners who primarily drive short commutes develop vane sticking 20,000-30,000 miles earlier than owners who regularly hit the highway.

The Wiring Problem Nobody Talks About

The factory wiring harness to the VGT actuator has a design flaw. There's not enough slack in the wires. Engine vibration and heat cycling cause the harness to chafe against the actuator housing. Over 50,000-100,000 miles, this rubbing wears through the insulation and eventually breaks the signal wires.

You'll get intermittent codes at first — P003A shows up randomly, then disappears for weeks. Clear the code, and it stays gone. That's the telltale sign of a wiring issue rather than mechanical sticking. The broken wire makes contact sometimes but not others, driving you crazy trying to diagnose it.

Inside the actuator itself, the circuit board sits in a hostile environment. Constant heat cycling from 200°F to 400°F+. Vibration. Moisture from condensation. After 3-5 years, the solder joints crack, the potentiometer wears out, and the internal gears strip teeth. When the electronics fail, the actuator can't report accurate vane position to the ECM, even if the vanes themselves move freely.

If your codes are intermittent and the vanes move freely during manual testing, start here. You'll need basic tools: wire strippers, butt connectors (18-20 gauge), heat shrink tubing, electrical tape, and a heat gun. Total cost: $20-50 depending on what you already own.

1. Disconnect the battery. Always. You're working with electronic control circuits.
2. Inspect the harness at the actuator plug. Look for worn insulation, exposed copper, or broken wires. The damage usually occurs within 6 inches of the connector where the harness rubs against the actuator housing.
3. Cut out the damaged section. Don't try to patch it — cut the wire cleanly on both sides of the damage. Strip 1/4 inch of insulation from each end.
4. Crimp with butt connectors. Slide heat shrink over one wire first (rookie mistake: forgetting this step). Insert both stripped ends into the butt connector and crimp firmly. Slide the heat shrink over the connection and apply heat until it seals.
5. Add slack for strain relief. This is the KEY step everyone skips. Create a small loop in the harness and secure it with a wire nut or zip tie to a nearby bracket. This prevents the repair from failing again in 6 months.
6. Reconnect and perform actuator relearn. Plug the connector back into the actuator (you'll hear a click when the locking tab engages). Clear codes and run the vane relearn procedure through your scanner.

One L5P owner documented his repair on YouTube: "Fixed my whistling exhaust instantly. Codes haven't come back in 15,000 miles. Took me 90 minutes and cost $30." That's the power of addressing root cause instead of throwing parts at the problem.

If this fix works, you just saved yourself $1,000+. If codes return within 100 miles, the problem's deeper — actuator electronics or mechanical sticking.

Actuator replacement is a bench job, not a turbo-off job. You can do this in your driveway in 2-4 hours with hand tools. No need to remove the turbo from the truck unless the vanes themselves are mechanically seized.

Removal Steps

Start with the lever arm disconnect. There's a 4mm Allen bolt securing the arm to the actuator shaft. Before loosening this bolt, tape the nut underneath to the lever arm. If you drop that nut, it falls into the engine valley and you're pulling the cab to retrieve it. Ask us how we know.

Remove the four 10mm nuts holding the actuator to the turbo housing. They're torqued to 119 in-lbs from the factory, so expect some resistance. Once the nuts are off, release the locking tab on the electrical connector and unplug it. The actuator slides and rotates off the turbo shaft — sometimes it takes gentle persuasion with a rubber mallet.

Remanufactured vs. New: The Smart Choice

GM wants $1,000-1,200 for a new OEM actuator (part number 12669748). That's insane for what's essentially a small servo motor. Remanufactured actuators from specialist shops cost $500-700, include a 1-year warranty, and ship same-day.

The best option: send your actuator to a circuit board repair service. They'll replace the potentiometer, fix gear wear, reflow solder joints, and test the unit on a bench simulator. Two-day turnaround, VIN-programmed if required, no core charge needed. This is the sweet spot between cheap eBay junk and overpriced OEM.

Installation and Calibration

Install the new or repaired actuator with the arm pointing DOWN. This is critical for proper vane calibration. Torque the four 10mm nuts to exactly 119 in-lbs. Torque the 4mm Allen bolt to 93 in-lbs. Reconnect the electrical plug until you hear the locking tab click.

Now comes the step everyone forgets: ECM calibration. The actuator needs to relearn the full range of vane travel. Without this step, codes return immediately. You can do this with a Tech2 scanner, GDS2 dealer software, or most aftermarket tuners like EFI Live. Key on, engine off, follow the prompts for turbo vane relearn. Takes 30 seconds.

Test drive immediately after calibration. Monitor boost pressure with your scanner. You should see smooth, progressive boost buildup with no hesitation. Exhaust note should be clean — no whistling, no surging. If everything's right, those codes won't come back.

Here's the truth: most L5P owners never need full turbo removal. The variable geometry mechanism in the Holset HE451VE is more resistant to carbon seizure than older LML turbos. If you've replaced the actuator, performed proper calibration, and codes still return, THEN you're looking at mechanical sticking.

Symptoms that indicate you need turbo removal: vanes won't move during manual testing even after cleaning attempts, codes return within 500 miles of actuator replacement, or you can physically see carbon buildup restricting vane movement when inspecting through the turbine housing with a flashlight.

The process involves removing the turbo from the truck (exhaust manifold bolts, oil feed/return lines, intake piping), disassembling the variable geometry mechanism, and soaking the unison ring and vanes in turbo cleaner solvent for 24 hours. You'll need specialty tools and significant mechanical experience. This is a weekend project minimum, not a driveway quickie.

Cost breakdown: DIY with cleaning solvents and new gaskets runs $200-400. Shop labor adds $800-1,200 depending on your area. Full turbo replacement with a remanufactured unit: $2,000-3,000 installed. At that price point, you're better off doing an L5P delete kit if your truck sees off-road use only.

Prevention beats removal every time. If you catch sticking early with the wiring fix or actuator replacement, you'll never need this level of intervention.

The scanner is your most important investment. Cheap code readers from auto parts stores will pull codes but can't perform the actuator relearn. You need something with bidirectional control — the ability to command the ECM to run calibration routines. EFI Live AutoCal V3 handles this plus gives you custom tuning capability for when you're ready to wake up that L5P.

For the wiring repair, don't cheap out on connectors. Marine-grade heat shrink with adhesive lining creates a waterproof seal that survives engine bay conditions. Dielectric grease on the actuator connector prevents corrosion and makes future service easier.

One more thing: if you're doing actuator replacement, order a new turbo-to-actuator gasket. They're $8-15 and prevent boost leaks. Reusing old gaskets is asking for trouble.

The best fix is the one you never need to do. Here's how to keep your VGT healthy for 150,000+ miles.

Change Your Driving Habits

Once a month, take your truck on a 30-mile highway run. Get the RPMs up to 2,500-3,000 and hold it there for 20 minutes. This generates exhaust gas temperatures high enough to burn off light carbon deposits before they bake onto vane mechanisms. Bonus: it also helps regenerate your DPF if you're running emissions equipment.

Avoid extended idling whenever possible. If you're waiting more than 2 minutes, shut it down. Idling creates the perfect carbon-building environment — low temperatures, minimal flow, maximum soot production.

Maintain Your Engine Properly

Oil changes matter more than you think. Blow-by gases carry oil vapor through the PCV system and into the intake. Dirty oil means more carbon deposits throughout the engine. Run high-quality CK-4 or FA-4 spec diesel oil and change it every 5,000 miles — not the 10,000-mile intervals GM suggests.

Keep your air filter clean. Restricted intake airflow changes the air-fuel ratio, creating more soot during combustion. Check it every 15,000 miles; replace if it's more than 50% blocked.

If you're running an L5P delete kit for off-road use, you'll eliminate most carbon buildup at the source. No EGR means no recirculated soot, which dramatically extends VGT life. Just remember — this is for closed-course use only.

Inspect Wiring During Regular Maintenance

Every time you're under the hood for service, take 30 seconds to check the VGT actuator wiring. Look for chafing, worn insulation, or harness tension. If you see wear developing, add strain relief before it becomes a $500 problem. A $2 zip tie and 60 seconds of work prevents hours of frustration later.
