EGR Delete Kit for L5P Duramax: Complete Technical Guide

The L5P Duramax debuted in 2017 as GM's answer to tighter EPA emissions standards. It's a 6.6L V8 capable of 445 HP and 910 LB-FT of torque from the factory — genuinely impressive numbers. But to meet federal NOx targets, GM fitted it with a full emissions stack: EGR, DPF, DOC, SCR, and DEF injection.

Here's how the EGR system actually works: hot exhaust gas gets routed through the EGR cooler, where engine coolant drops the gas temperature before the EGR valve meters it back into the intake manifold. This dilutes the incoming charge air, lowers peak combustion temps, and reduces NOx output — which is exactly what the EPA regulations in 40 CFR Part 86 require for heavy-duty diesel engines.

The tradeoff? Every time exhaust gas passes through the intake, it brings soot, unburned hydrocarbons, and oil vapor with it. On the L5P, this means:

• Carbon buildup in intake runners and valves over time
• An oily soot coating in the charge air path, especially when combined with crankcase vapors
• Additional heat load on the cooling system from the EGR cooler heat exchanger
• Potential for EGR cooler failure — an internal leak can mix exhaust gas and coolant
• A sticky or failed EGR valve throwing DTCs and causing drivability issues

The L5P is more robust than older generations, but these failure modes are still real. That's why performance-minded owners running heavy towing loads or competition applications look to an EGR delete kit for L5P Duramax trucks as a reliability and performance upgrade — for off-road use.

Let's break it down. An EGR delete kit is the mechanical side of the equation — the steel and aluminum hardware that physically blocks off or removes the EGR system from your L5P. The Diesel Dudes EGR Delete for GM/Chevy Duramax 2017-2023 L5P ^[70] is purpose-built for this platform.

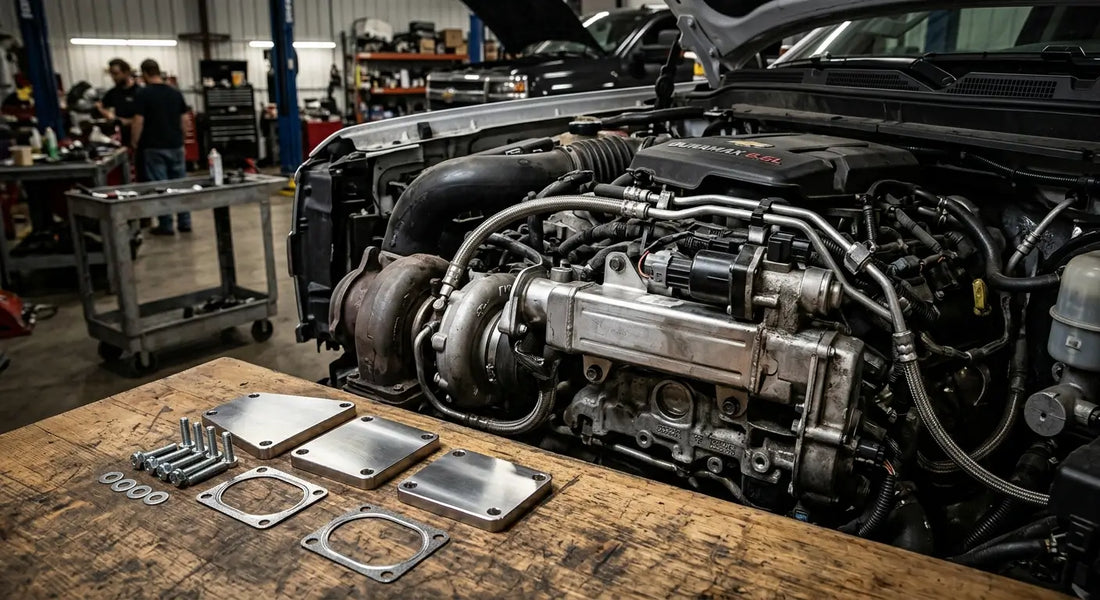

What's Included in a Typical L5P EGR Delete Kit

• Block-off plate (exhaust side) — seals the EGR cooler port at the exhaust manifold/up-pipe connection, preventing exhaust gas from entering the EGR circuit
• Block-off plate (intake side) — seals the EGR port at the intake horn or intake manifold connection
• Coolant reroute hose(s) — replaces the factory hard coolant lines that fed the EGR cooler; routes coolant in a bypass loop once the cooler is removed
• Hose clamps, plugs, and fittings — secures the new coolant routing and plugs any open ports
• High-temp gaskets — seals block-off plates against exhaust and intake surfaces; must be rated for sustained heat and pressure
• New bolts and washers — replaces OEM hardware with correct-spec fasteners

What's not included: the tuning. Bolting on an EGR delete kit without flashing a matching tune will immediately trigger check-engine lights, stored EGR-related DTCs, and potentially put the truck into limp mode. The ECM still expects EGR flow readings from its sensors — you must address that with software.

The Diesel Dudes also offers the GM/Chevy Duramax 6.6 L5P Full Delete Bundle | 2017–2023 ^[99], which bundles the EGR hardware with the DPF/CAT delete pipe, ECM unlock hardware, CAN BUS plug kit, and delete tunes — so you're not piecing together a puzzle from multiple vendors.

Disclosure: The Diesel Dudes sells some of the products mentioned in this article. Our recommendations are based on hands-on testing and customer feedback.

Here's the deal — the legal framework here is federal, not state-by-state. The core prohibition lives in 42 U.S.C. § 7522(a)(3), which makes it unlawful for any person to remove or render inoperative any device or element of design installed on a motor vehicle in compliance with federal emissions regulations, either before or after sale.

The EPA's enforcement division has pursued cases specifically targeting aftermarket emissions defeat devices and tuning. According to an EPA consent decree document ^[3], penalties for emissions tampering violations can include fines and injunctive relief — the agency treats this seriously, and enforcement actions against both tuners and parts sellers have resulted in multi-million-dollar settlements.

Here's what that means for L5P owners:

• Street-driven trucks: Deleting the EGR on a vehicle used on public roads is not legal under federal law, regardless of whether your state runs emissions inspections.
• Off-road/competition use: EGR delete kits are marketed and sold for off-road, competition, and racing applications only. This is the intended and legal use case.
• State-level enforcement: States like California (under CARB authority) run stringent visual and OBD-based inspections. Other states enforce federal standards with varying intensity. Know your local regulations.
• Selling a deleted truck: Some states require emissions checks at registration renewal or point of sale — a deleted truck may need to be returned to stock.

The Diesel Dudes sells delete components for off-road and competition use only. We're not here to tell you what to do with your truck — we're here to make sure you have the full picture before you order.

Legal Notice: Removing or tampering with emissions equipment may violate the federal Clean Air Act and state emissions regulations. Penalties can include fines up to $5,000 for individuals. Check your local and state laws before modifying emissions equipment on any vehicle driven on public roads.

Let's talk about why competition-focused L5P owners pursue an EGR delete kit. Here's what changes when the EGR system is removed and the truck is properly tuned:

Cleaner Intake and Valves

With EGR active, every combustion cycle pushes a metered dose of exhaust gas — loaded with soot, unburned hydrocarbons, and oil mist — back through the intake. On a high-mileage L5P running heavy towing duty cycles, carbon deposits on intake runners and valves are a real consequence. Blocking EGR removes that soot stream entirely, helping the intake tract stay cleaner over the long haul.

Reduced Cooling System Heat Load

The EGR cooler is a heat exchanger that uses engine coolant to drop exhaust gas temperatures before recirculation. That heat has to go somewhere — it goes into your coolant. Under sustained towing loads where the EGR duty cycle is highest, that's a measurable added burden on the cooling system. Remove the cooler, reroute the coolant lines with the bypass hose in the kit, and that heat source disappears from the equation.

Elimination of EGR-Specific Failure Points

EGR cooler failures — internal leaks that mix exhaust gas and coolant — and sticky EGR valves that throw DTCs are both documented failure modes across the Duramax platform. Removing the valve and cooler physically removes those components as future failure points. No valve, no valve failure.

Throttle Response and Drivability (With Tuning)

Once the EGR is deleted and paired with a proper delete tune, owners consistently report sharper throttle response and more predictable boost behavior. The intake charge is denser and cleaner — oxygen-rich air without dilution from recirculated exhaust. Combine that with a DPF & CAT Delete Pipe for the L5P ^[51] and a matched tune, and you're running a fundamentally different exhaust and intake path than stock.

EGT (exhaust gas temperature) management also improves in some operating conditions — a cooler, oxygen-rich intake charge can mean lower EGTs under load, which is meaningful for competition and towing applications where thermal management matters.

This is where a lot of first-time L5P delete buyers get tripped up. The EGR delete kit handles the mechanical side. The rest of the list is just as important.

ECM Unlock Hardware

The L5P runs a GM E41 ECM that is factory-locked — you cannot flash any custom or delete tune without first unlocking it. This is the biggest differentiator between an L5P delete and older Duramax generations. The unlock process typically requires bench or inline unlock hardware and specific credits matched to your VIN and year.

The Diesel Dudes GM/Chevy Duramax 6.6 L5P Delete Tuner Kit | 2017-2023 ^[98] includes the ECM unlock hardware pre-configured, so you're not sourcing unlock tools separately and hoping the credits match your truck.

CAN BUS Plug Kit

The L5P uses a CAN (Controller Area Network) bus architecture for inter-module communication. After deleting emissions hardware, the GM/CHEVY L5P CAN BUS Plug Kit | 2017-2023 ^[105] is required to prevent communication errors between modules that would otherwise generate persistent DTCs and drivability issues. This is not optional — it's part of the complete L5P delete workflow.

Delete Tune / Software Credits

The Duramax L5P 2017-2023 DELETE SOFTWARE ^[56] covers the tune files and credits needed to disable EGR commands, DPF regen cycles, DEF injection, and SCR operation in the ECM. The tune must be matched to your specific year and VIN — generic or year-mismatched tunes are a bad idea on the L5P.

DPF/CAT Delete Pipe and Exhaust

Most serious L5P owners combine EGR delete with a full exhaust delete. The 5-inch Down Pipe-Back Full Exhaust Delete for GM/Chevy 6.6 Duramax 2017-2023 ^[23] is the go-to for 2017–2023 trucks. Running the tune without the DPF deleted is not a supported configuration — do not drive the truck on a delete tune with the DPF still in place.

Not all L5P trucks are the same under the hood — GM has updated calibrations and packaging across the L5P's production run. Here's the breakdown you need before ordering:

Year Range	Make/Model	Engine	Compatible Delete Kit
2017–2019	GM/Chevy Silverado 2500/3500, Sierra 2500/3500	6.6L Duramax L5P	L5P Full Delete Bundle 2017–2023
2020–2023	GM/Chevy Silverado 2500/3500 HD, Sierra 2500/3500 HD	6.6L Duramax L5P	L5P Full Delete Bundle 2017–2023
2024–2026	GM/Chevy Silverado 2500/3500 HD, Sierra 2500/3500 HD (refreshed body)	6.6L Duramax L5P	Contact TDD — year-specific tuning required

A few important notes on year-specific differences:

2017–2019: First-generation L5P trucks. The EGR hardware and exhaust packaging are consistent across this range. CAN BUS plug installation is required — the plug location differs between 2017–2019 and 2020–2023 trucks, so follow your year's specific install guide.

2020–2023: Updated ECM calibration and revised emissions system packaging. Many delete kits now explicitly label 2017–2023 coverage because the hardware footprint is similar, but tuning files must still be matched to your specific year and VIN.

2024–2026: The refreshed-body L5P trucks have additional calibration updates. The Diesel Dudes L5P delete solutions ^[99] are expanding coverage for these years — contact us directly to confirm current availability and confirm the correct unlock path for your truck's ECM.

Bottom line: never assume a kit labeled for one L5P year range fits another. The mechanical parts may physically fit, but the tuning will not. Mismatched tunes on a locked or improperly unlocked E41 ECM will cause serious drivability issues.

Our technicians see L5P EGR deletes regularly, and the most common mistake is starting with the hardware before the tune is ready. Follow this sequence:

Installation Order (Critical)

1. Flash the delete tune first — unlock the E41 ECM, install CAN BUS plugs, and load the delete tune before touching any hard parts. The truck needs to communicate correctly from the moment you start removing emissions hardware.
2. Gather tools and prep the bay — socket set (metric, with 13mm and extensions), wrenches, pliers, coolant catch pan, torque wrench. Park on a level surface, chock wheels, disconnect both battery negative terminals, and let the engine cool completely.
3. Gain access — remove the passenger-side inner fender liner to access EGR components. Pull the intake pipe and airbox to clear room around the EGR valve and intake horn.
4. Drain coolant (partial) — open the radiator drain on the lower passenger side and collect coolant in a clean pan. Keep the reservoir cap on initially to control flow rate.
5. Remove factory EGR components — disconnect electrical connectors to the EGR valve and related sensors. Remove the EGR hot-side pipe and heat shield (typically six 13mm bolts). Unbolt and remove the EGR cooler assembly from its mounting points. Remove intake horn bolts to disconnect EGR plumbing from the intake side.
6. Install block-off plates and reroute coolant — clean all mating surfaces of soot and old gasket material. Install block-off plates at the exhaust manifold side and intake/EGR port locations using the kit's supplied gaskets and hardware. Replace factory coolant hard lines to the EGR cooler with the kit's soft bypass hose and clamps.
7. Reassemble and bleed — reinstall intake horn, intake piping, and fender liner. Refill coolant, reconnect batteries. Start the engine and let it reach operating temperature. Bleed cooling system air by topping off coolant as the thermostat opens and air works out. Check for coolant, boost, and exhaust leaks at all new connections.

Based on hundreds of TDD customer installs, plan for 4–6 hours if you're experienced with basic engine work. Budget an extra hour if it's your first time navigating the L5P's tight engine bay clearances. And remember: do not drive the truck with a delete tune installed and the DPF still in place ^[99].

Here's a realistic cost breakdown so you know what you're actually budgeting for:

Component	DIY Cost Range	Notes
EGR Delete Kit (hardware only)	$300–$500+	Block-off plates, coolant reroute, gaskets, hardware
DPF/CAT Delete Pipe	$475–$600+	L5P-specific; pricing from $599 at TDD [51]
5" Full Exhaust Delete	$800–$1,100+	Downpipe-back, stainless; from TDD [23]
ECM Unlock Hardware + Tunes	Varies; included in full bundle	L5P E41 unlock is platform-specific
CAN BUS Plug Kit	Included in full bundle [105]	Required for L5P; not optional
Shop Labor (full delete)	~$1,200–$2,000+	Regional variation; some shops quote higher

The math gets complicated fast if you're sourcing components individually. That's why the GM/Chevy Duramax 6.6 L5P Full Delete Bundle | 2017–2023 ^[99] makes more sense for most buyers — it's a pre-configured package that includes the EGR delete hardware, DPF/CAT pipe, 5" stainless exhaust, ECM unlock hardware, CAN BUS plug kit, and delete tunes matched to your year. No compatibility guesswork, no sourcing four separate vendors.

The Diesel Dudes also offers a GM/Chevy Duramax 6.6 L5P Delete Tuner Kit | 2017–2023 ^[98] if you already have the exhaust hardware and just need the ECM unlock and tuning solution.

First-time buyer? Use code TAKE30 at checkout or reach out to us at sales@thedieseldudes.com to check on current promotions.

If you're comparing the L5P delete process to what your buddy did on his LML or LMM, buckle up — there are real differences.

The LMM (2007.5–2010) predates the SCR/DEF system GM added with the LML in 2011. An LMM delete covers EGR and DPF only — no DEF injection, no SCR catalyst to worry about. The EGR Delete for GM/Chevy Duramax 2007.5-2010 LMM ^[68] is a simpler install compared to the full L5P stack, and the EFI Live Autocal V3 ^[58] handles tuning without the locked ECM complexity.

The LML (2011–2016) added SCR and DEF to the mix, making it the first Duramax generation requiring a full EGR/DPF/DEF delete for a complete emissions-off configuration. The EGR Delete for GM/Chevy Duramax 2011–2016 LML ^[69] handles the mechanical side, and the LML Full Delete Bundle ^[100] covers the complete package — starting from $1,890.

The LBZ (2006–2007) and LLY (2004–2005) are the simplest deletes in the Duramax family — no DPF, no SCR, no DEF. The LBZ EGR Delete ^[67] and LLY EGR Delete ^[66] are straightforward bolt-on kits by comparison.

The L5P's locked E41 ECM is the key differentiator. Every other Duramax generation can be tuned via OBD port with the right interface without unlocking the ECM first. The L5P cannot. That's why the full L5P delete bundle ^[99] — with ECM unlock hardware included — is the only approach that makes sense for this platform.
