EGR Delete Kit 6.7 Powerstroke: Complete Guide for Off-Road Builds

The 6.7L Powerstroke's EGR system is part of Ford's broader emissions suite, which also includes the DPF (Diesel Particulate Filter), SCR (Selective Catalytic Reduction), and DEF (Diesel Exhaust Fluid) injection. The EGR system specifically targets NOx reduction by recirculating exhaust back into the air charge before combustion — lowering peak cylinder temperatures and reducing nitrogen oxide output.

Here's the stock flow path: exhaust exits the cylinders → passes through the EGR cooler (which drops exhaust gas temps using engine coolant) → passes through the EGR valve → re-enters the intake manifold. The PCM manages EGR valve position in a closed-loop strategy using differential pressure sensors and EGT (Exhaust Gas Temperature) sensors to control flow rate.

The problem is real and well-documented. Hot, sooty exhaust cycling through the intake continuously deposits carbon on intake valves, intake runners, and the EGR valve itself. The EPA's national enforcement initiative on aftermarket defeat devices confirms that EGR systems are an active area of regulatory focus precisely because of how commonly these components fail on modern diesel platforms ^[1].

On the 6.7 Powerstroke specifically, common EGR-related failure modes include:

• EGR cooler cracking or failure — allows coolant to enter the intake/exhaust path, a serious reliability issue
• EGR valve sticking or failing — triggers P-codes and can cause rough idle or surging
• Carbon buildup in the intake manifold — restricts airflow and reduces combustion efficiency
• Repeat derates and limp-mode events — especially on heavily towed or hot-climate trucks

For competition and off-road builds, eliminating the EGR system removes all of these failure modes simultaneously and restores the intake to fresh, oxygen-rich air only.

An EGR delete kit physically removes the EGR system from the engine's air circuit. The kit blocks off the exhaust ports that fed hot gas into the EGR cooler, removes the EGR valve from the intake horn, and reroutes coolant so the circuit remains intact after the EGR cooler is pulled.

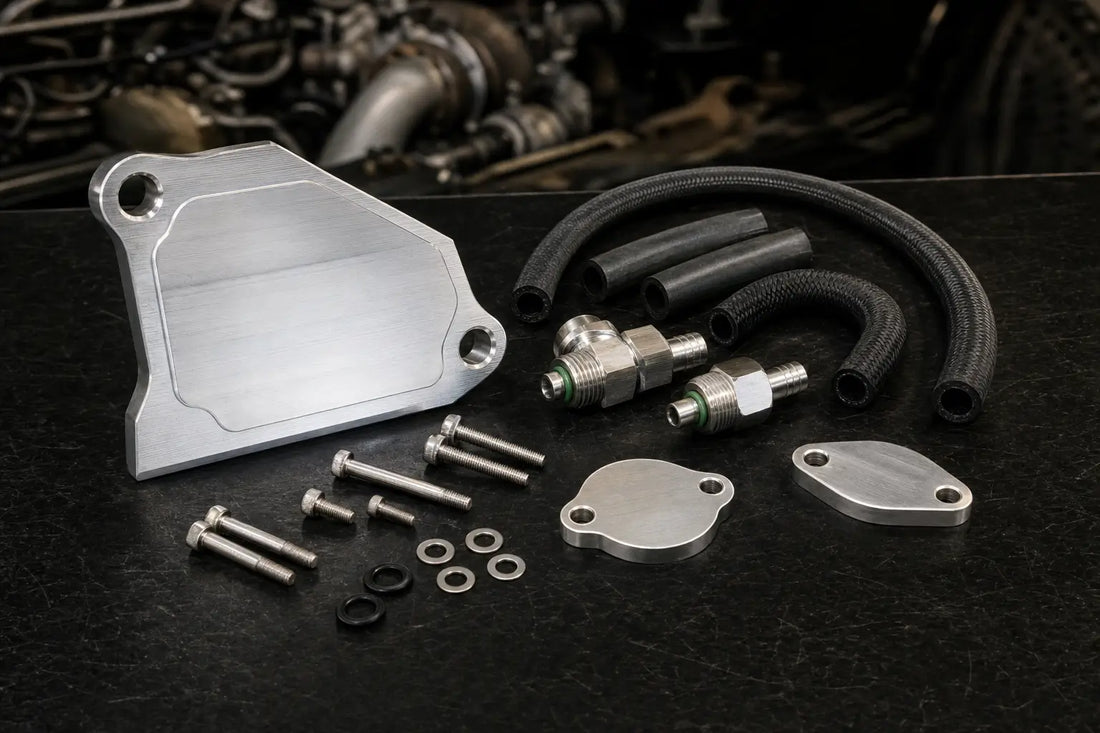

Core Components in a Quality Kit

• Billet block-off plates — CNC-machined aluminum or stainless steel, precision-fit to OEM flange dimensions on both the exhaust and intake sides
• Coolant bypass fittings and hoses — high-temp rated; maintain proper coolant flow after EGR cooler removal
• EGT probe provision — tapped port on the exhaust cover plate to retain the OEM exhaust gas temperature sensor and prevent DTC triggers
• Full hardware pack — all bolts, washers, clamps, and gaskets needed for a complete install

The Diesel Dudes' 2011–2025 Ford 6.7L Powerstroke EGR Delete Kit | Pass-Through Design ^[4] is a purpose-built kit with exactly these features — year-specific fitment from 2011 through 2025 and a pass-through design that maintains a stock-like engine bay appearance while fully eliminating EGR function.

Full Delete vs. Pass-Through Style

A full delete kit removes the EGR cooler and valve entirely, blocks all ports, and reroutes coolant. A pass-through or stealth design retains the external housing/bracket positions but internally bypasses EGR function — often preferred for builds where engine bay appearance matters or reinstall to stock may be needed later.

Both styles require a proper tune. Without one, the PCM will immediately set EGR flow fault codes (DTC P0401 and related codes are common on the 6.7 platform) and can enter limp mode within minutes of startup.

This is the most common mistake we see — a customer orders a kit that's one generation off and then wonders why the plates don't line up. The 6.7 Powerstroke has undergone significant engine bay and emissions hardware changes across its production run. Here's the full fitment breakdown:

Year Range	Make/Model	Engine	Compatible Kit
2011–2014	Ford F-250 to F-550	6.7L Powerstroke	EGR Delete Kit 2011–2014 [45]
2015–2016	Ford F-250 to F-550	6.7L Powerstroke	EGR Delete Kit 2015–2016 [5]
2017–2019	Ford F-250 to F-550	6.7L Powerstroke	EGR Delete Kit 2017–2019 [6]
2020–2025	Ford F-250 to F-550	6.7L Powerstroke	EGR Delete Kit 2020–2025 [46]
2011–2025	Ford F-250 to F-550	6.7L Powerstroke	Pass-Through Design EGR Delete Kit [4]

The 2015–2016 generation introduced mid-cycle EGR cooler and coolant routing revisions that make the kit geometry incompatible with 2011–2014 plates. The 2017+ trucks added additional layout changes to the under-hood emissions packaging. The 2020+ trucks received further power and calibration updates that also affect how the EGR tune must be structured.

Bottom line: always confirm your model year before ordering. If you're not sure which kit applies to your build, call us at (888) 830-2588 — we verify fitment on every order.

Let's be direct about what an EGR delete actually does for your 6.7 Powerstroke in a competition or off-road context. These benefits are for off-road/competition use only and are not applicable to street-driven trucks under federal law.

Performance and Throttle Response

With EGR removed, the engine ingests only fresh, cool, oxygen-rich air — not a mix of recirculated exhaust and air. That means better combustion quality, less intake heat soak, and a measurable drop in intake charge temperatures. Paired with a proper delete tune, owners on off-road builds commonly report 5–15 HP gains and noticeably sharper throttle response, especially under tow loads where EGR flow is highest and the thermal impact is greatest.

Reliability and Reduced Carbon Buildup

This is the big one for working trucks. The EGR cooler on the 6.7 Powerstroke is a known failure point — when it cracks, it dumps coolant into the intake path. Removing it eliminates that failure mode entirely. The EGR valve itself is another common stuck-open or stuck-closed failure that triggers P-codes and derates. Both are gone with a quality EGR delete kit ^[4].

Carbon buildup in the intake manifold accumulates over tens of thousands of miles of EGR operation. On deleted builds, the intake stays clean because soot-laden exhaust no longer cycles through it. Our technicians have seen high-mileage 6.7 Powerstroke trucks with intake runners almost fully restricted by carbon — a condition that simply doesn't develop on properly deleted off-road builds.

Potential Fuel Economy Improvements

Reduced pumping losses and improved combustion efficiency can yield modest MPG improvements, particularly under load. Results vary significantly based on tune quality, driving conditions, and whether the DPF and DEF systems are also addressed. No specific MPG number is guaranteed — the primary wins are reliability and cleaner intake.

This section exists because honesty matters more to us than a sale. Here's the straight legal and practical picture:

The federal Clean Air Act, specifically 42 U.S.C. § 7522(a)(3), prohibits any person from tampering with or removing emission control devices on motor vehicles intended for use on public roads. The EGR system is a certified part of the 6.7 Powerstroke's emission configuration. Removing or disabling it on a street-driven truck violates federal law.

The EPA's National Enforcement and Compliance Initiative specifically targets aftermarket defeat devices — this is an active, funded enforcement program, not a dormant statute ^[1]. Consequences for non-compliant vehicles can include:

• Individual fines up to $5,000 per violation
• Failure of state emissions inspections in regulated states
• Dealership denial of warranty coverage for any issue tied to the modified emissions system
• Potential liability for shops that perform the work on street vehicles

EGR deletes are also governed under 40 CFR Part 86, which establishes the federal emissions certification requirements that every diesel truck must meet at the time of sale. Altering that certified configuration for street use is the legal violation.

EGR delete kits are engineered and sold for off-road and competition use only. Trucks must not be operated on public roads in emissions-regulated jurisdictions with emissions equipment removed or disabled. If your build is for a race truck, farm equipment, or dedicated off-road use vehicle that will never be registered for street use, these kits are purpose-built for that application.

Legal Notice: Removing or tampering with emissions equipment may violate the federal Clean Air Act and state emissions regulations. Penalties can include fines up to $5,000 for individuals. Check your local and state laws before modifying emissions equipment on any vehicle driven on public roads.

Here's the practical rundown on what the install actually involves. This is a high-level overview — always follow the specific instructions included with your kit for your model year.

Tools You'll Need

• Metric socket set and combination wrenches (7mm, 8mm, 10mm, 13mm commonly used)
• Hose clamp pliers
• Penetrating oil for stubborn factory hardware
• Coolant drain pan(s)
• Flathead and Phillips screwdrivers
• Gloves and eye protection
• Battery charger (required during tune upload)

High-Level Install Steps

1. Load the tune first — this is non-negotiable. Install the delete tune before touching any hard parts. Disconnect the air intake throttle valve before tune installation and ensure both batteries are fully charged with a charger connected throughout the process.
2. Disconnect negative battery cables on both batteries.
3. Drain engine coolant into appropriate containers.
4. Remove intake charge pipes to access the EGR cooler and valve assembly.
5. Disconnect electrical connectors, coolant lines, and exhaust connections to the EGR assembly.
6. Remove the EGR cooler and EGR valve.
7. Install block-off plates on exhaust and intake ports using supplied gaskets and hardware.
8. Install coolant bypass hose and fittings to complete the cooling circuit.
9. Reinstall intake plumbing and any removed brackets.
10. Refill coolant and bleed air from the system per the cooling system procedure.
11. Start the engine and check for coolant leaks, exhaust leaks, or abnormal codes.

The Diesel Dudes Technical Team recommends professional installation for 2020+ trucks where under-hood packaging is significantly tighter. Per our shop experience across hundreds of 6.7 Powerstroke EGR delete installs, the 2011–2016 trucks are the most straightforward for experienced DIYers. The 2017–2019 and newer generations benefit from a lift and additional time budgeted for the more complex layout.

Do not drive the truck without the DPF/CAT also deleted once the tune is installed — the calibration is written to run without the DPF in-circuit on most delete tune platforms.

Hardware is half the equation. The tune is the other half — and it's where cheap, incomplete solutions fall apart the fastest.

The factory PCM on every 6.7 Powerstroke generation monitors EGR flow continuously. It controls EGR valve position based on engine load, RPM, and temperature targets. The moment EGR flow drops to zero with a stock calibration, the PCM flags it as a fault, sets DTCs (typically P0401, P0402, and related EGR sensor codes), and depending on fault severity, may initiate a derate or limp mode.

A proper delete tune must:

• Disable EGR valve position commands (tells the PCM to stop commanding EGR flow)
• Disable EGR-related diagnostic monitors so no DTCs are set for zero EGR flow
• Recalibrate fueling tables and boost targets to account for the change in intake air mass with 100% fresh air charge
• Coordinate with DPF and DEF logic if those systems are also being addressed

The Diesel Dudes carries several proven tuner platforms for the 6.7 Powerstroke. The EZ LYNK Auto Agent 3 for Ford Powerstroke 2008–2022 ^[59] delivers a custom delete calibration with lifetime support. For 2011–2019 trucks, the BullyDog BDX for Ford Powerstroke 2011–2019 ^[22] is a popular plug-and-play option with over 353 customer reviews. For 2023–2025 trucks, the EZ LYNK software for Ford 2023–2025 6.7L ^[68] provides the platform-specific calibration that newer trucks require.

Our strong recommendation: always buy the kit and tune together. Mixing a quality EGR delete kit with a misconfigured or generic tune is the single biggest source of problems we see in customer support calls. The Ford Delete Tune Software collection ^[119] has every tuner option sorted by year for easy selection.

Many 6.7 Powerstroke owners come to us looking for just an EGR delete, then quickly realize the EGR and DPF systems are linked in the PCM's emissions control strategy. Here's why most serious off-road builds go full delete:

The factory PCM coordinates EGR control, DPF regeneration, and DEF injection as a unified emissions system. When you tune out EGR, the tune must also account for DPF regen logic — which is why most delete calibrations are written to run without the DPF in-circuit. Attempting to run an EGR delete tune with the DPF still in place can cause accelerated DPF clogging and potentially damage the filter or turbo.

The Diesel Dudes full delete bundles are engineered as complete systems for each 6.7 Powerstroke generation ^[4]:

Bundle	Year Range	What's Included	Starting Price
Full Delete Bundle 2011–2012 [70]	2011–2012	EGR Kit + DPF Pipe + Tuner	From $1,784
Full Delete Bundle 2013–2014 [71]	2013–2014	EGR Kit + DPF Pipe + Tuner	From $1,784
Full Delete Bundle 2015–2016 [72]	2015–2016	EGR Kit + DPF Pipe + Tuner	From $1,734
Full Delete Bundle 2017–2019 [73]	2017–2019	EGR Kit + DPF Pipe + Tuner	From $1,734
Full Delete Bundle 2020–2022 [74]	2020–2022	EGR Kit + DPF Pipe + Tuner	From varies
Full Delete Bundle 2023–2026 [75]	2023–2026	EGR Kit + DPF Pipe + Tuner	From varies

Buying a bundle eliminates compatibility guesswork and typically saves money versus sourcing components individually. Every bundle is spec'd by our team specifically for that model year's hardware layout and PCM calibration requirements ^[4].

Disclosure: The Diesel Dudes sells the products mentioned in this article. Our recommendations are based on hands-on testing and customer feedback.

Our customer support team fields calls about failed EGR delete installs regularly. The common thread in almost every problem case is a cheap kit that cut corners on fitment, materials, or completeness. Here's what to watch for:

• Generic block-off plates not designed for your specific year — the 6.7 Powerstroke EGR flange geometry changed between 2011–2014, 2015–2016, 2017–2019, and 2020+ trucks. A plate made for the wrong year will not seat correctly, causing exhaust leaks into the engine bay and soot contamination.
• No coolant bypass hardware — some bargain kits are block-off plates only, with zero provision for completing the coolant circuit after EGR cooler removal. The result is localized hot spots in the cooling system and potential overheating on subsequent heat cycles.
• No EGT probe port — the 6.7 Powerstroke uses EGT sensors as part of its emissions monitoring strategy. A block-off plate with no tapped port for the OEM EGT sensor forces a hacky solution or leaves a live sensor dangling in open air, setting additional DTCs.
• Missing or incorrect hardware — kits that don't include model-year-specific gaskets, grade-rated fasteners, and clamps leave installers sourcing parts mid-job, often resulting in incorrect torque values or improper sealing materials.
• No support or documentation — a kit with a single-page generic instruction sheet is not adequate for a job that involves the cooling system and emissions electronics. Proper documentation for each model year is non-negotiable.

The Diesel Dudes' kits are designed, tested, and supported for specific 6.7 Powerstroke year ranges ^{[45] [4] [46]}. Every kit ships with year-specific installation documentation, and our technical team is available at (888) 830-2588 for install support. We also offer a 1-Year Extended Warranty on EGR Kits ^[2] for added peace of mind on your off-road build.
